[tyla@rpm-dev01 ~]$ sudo -i
[sudo] password for tyla:
# update system and package with YUM
[root@rpm-dev01 ~]# yum update -y
# install required freeRADIUS package with YUM
[root@rpm-dev01 ~]# sudo yum -y install freeradius freeradius-utils freeradius-mysql freeradius-perl
# start and enable the freeRADIUS daemon radiusd as below
[root@rpm-dev01 ~]# systemctl start radiusd
[root@rpm-dev01 ~]# systemctl enable radiusd
# verify the status of radiusd
[root@rpm-dev01 ~]# systemctl status radiusd
● radiusd.service - FreeRADIUS high performance RADIUS server.
Loaded: loaded (/usr/lib/systemd/system/radiusd.service; enabled; vendor preset: disabled)
Active: active (running) since Thu 2019-10-31 15:55:13 UTC; 1 day 20h ago
Process: 11626 ExecReload=/bin/kill -HUP $MAINPID (code=exited, status=0/SUCCESS)
Process: 11622 ExecReload=/usr/sbin/radiusd -C (code=exited, status=0/SUCCESS)
Process: 2095 ExecStart=/usr/sbin/radiusd -d /etc/raddb (code=exited, status=0/SUCCESS)
Process: 2090 ExecStartPre=/usr/sbin/radiusd -C (code=exited, status=0/SUCCESS)
Process: 2088 ExecStartPre=/bin/chown -R radiusd.radiusd /var/run/radiusd (code=exited, status=0/SUCCESS)
Main PID: 2098 (radiusd)
CGroup: /system.slice/radiusd.service
└─2098 /usr/sbin/radiusd -d /etc/raddb
Oct 31 15:55:13 rpm-dev01 systemd[1]: Starting FreeRADIUS high performan....
Oct 31 15:55:13 rpm-dev01 systemd[1]: Started FreeRADIUS high performanc....
Nov 01 03:47:01 rpm-dev01 systemd[1]: Reloading FreeRADIUS high performa....
Nov 01 03:47:01 rpm-dev01 systemd[1]: Reloaded FreeRADIUS high performan....
Hint: Some lines were ellipsized, use -l to show in full.
# start and enable firewalld on CentOS7
[root@rpm-dev01 ~]# systemctl enable firewalld
[root@rpm-dev01 ~]# systemctl start firewalld
# verify the status of firewalld
[root@rpm-dev01 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; enabled; vendor preset: enabled)
Active: active (running) since Fri 2019-10-11 18:11:21 UTC; 3 weeks 0 days ago
Docs: man:firewalld(1)
Main PID: 958 (firewalld)
CGroup: /system.slice/firewalld.service
└─958 /usr/bin/python2 -Es /usr/sbin/firewalld --nofork --nopid
Oct 11 18:11:20 rpm-dev01 systemd[1]: Starting firewalld - dynamic firew....
Oct 11 18:11:21 rpm-dev01 systemd[1]: Started firewalld - dynamic firewa....
Hint: Some lines were ellipsized, use -l to show in full.
# add http, https, radius services to be allowed through the firewalld permanently
[root@rpm-dev01 ~]# firewall-cmd --add-service={http,https,radius} --permanent
# reload the firewalld
[root@rpm-dev01 ~]# firewall-cmd --reload
# check the default zone on firewalld
[root@rpm-dev01 ~]# firewall-cmd --get-default-zone
public
# list the allowed services in public zone on firewalld
[root@rpm-dev01 ~]# firewall-cmd --list-services --zone=public
dhcpv6-client http https radius ssh

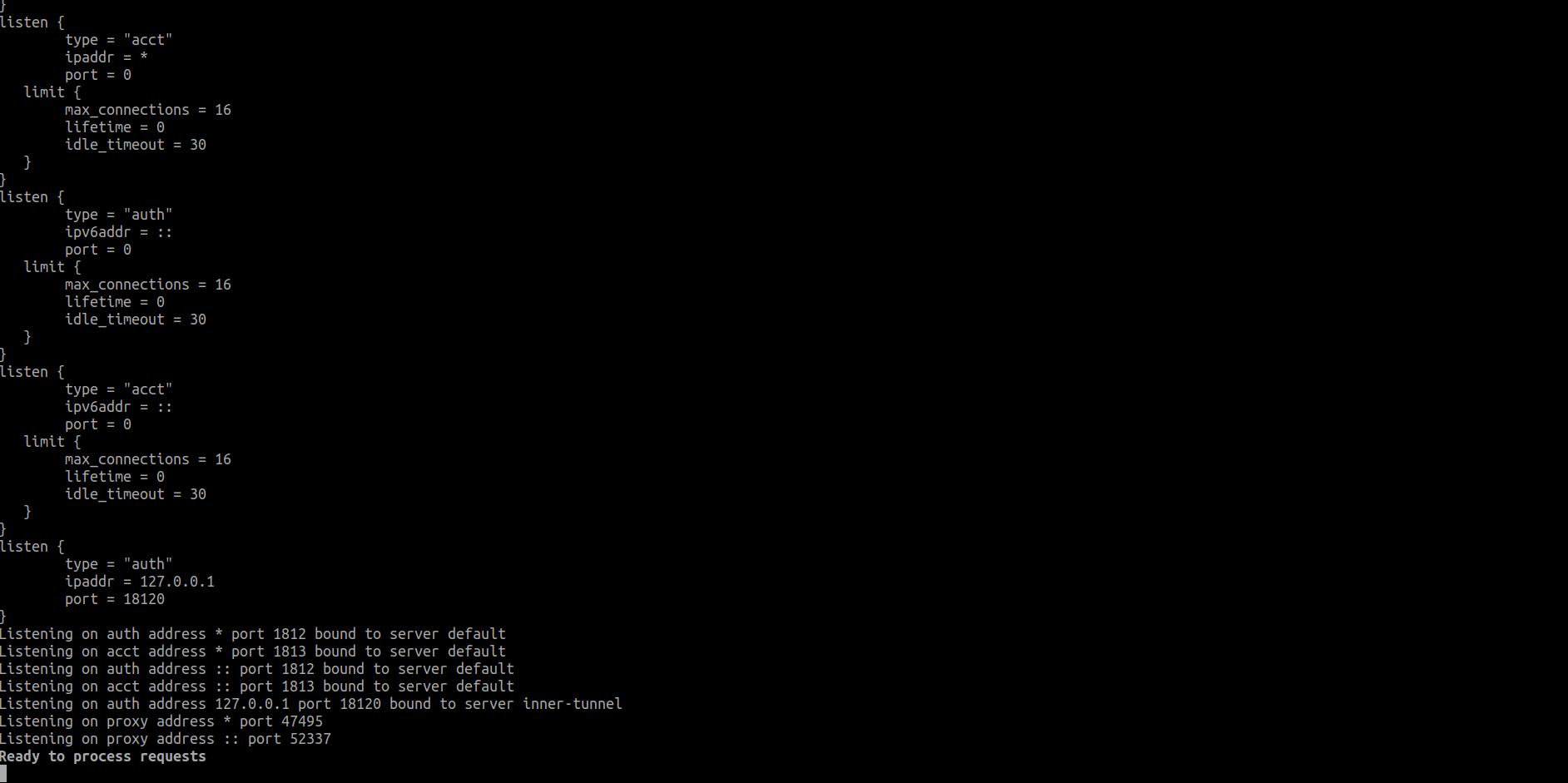

# test freeRADIUS server in debug mode
[root@rpm-dev01 ~]# pkill radius
[root@rpm-dev01 ~]# radiusd -X
.....
Listening on auth address * port 1812 bound to server default
Listening on acct address * port 1813 bound to server default
Listening on auth address :: port 1812 bound to server default
Listening on acct address :: port 1813 bound to server default
Listening on auth address 127.0.0.1 port 18120 bound to server inner-tunnel
Listening on proxy address * port 47495
Listening on proxy address :: port 52337
Ready to process requests
# mariadb 10 is not the default on CentOS7 thus add the repo to yum repos
[root@rpm-dev01 ~]# vi /etc/yum.repos.d/MariaDB.repo
[mariadb]
name = MariaDB
baseurl = http://yum.mariadb.org/10.1/centos7-amd64
gpgkey=https://yum.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1
# update the package index
[root@rpm-dev01 ~]# yum -y update
# install mariadb
[root@rpm-dev01 ~]# yum install -y mariadb-server mariadb
# start and enable mariadb
[root@rpm-dev01 ~]# systemctl start mariadb
[root@rpm-dev01 ~]# systemctl enable mariadb
# verify the mariadb status
[root@rpm-dev01 ~]# systemctl status mariadb
● mariadb.service - MariaDB 10.1.41 database server
Loaded: loaded (/usr/lib/systemd/system/mariadb.service; enabled; vendor preset: disabled)
Drop-In: /etc/systemd/system/mariadb.service.d
└─migrated-from-my.cnf-settings.conf
Active: active (running) since Fri 2019-10-11 18:11:23 UTC; 3 weeks 0 days ago
Docs: man:mysqld(8)
https://mariadb.com/kb/en/library/systemd/
Process: 1669 ExecStartPost=/bin/sh -c systemctl unset-environment _WSREP_START_POSITION (code=exited, status=0/SUCCESS)
Process: 1300 ExecStartPre=/bin/sh -c [ ! -e /usr/bin/galera_recovery ] && VAR= || VAR=`/usr/bin/galera_recovery`; [ $? -eq 0 ] && systemctl set-environment _WSREP_START_POSITION=$VAR || exit 1 (code=exited, status=0/SUCCESS)
Process: 1292 ExecStartPre=/bin/sh -c systemctl unset-environment _WSREP_START_POSITION (code=exited, status=0/SUCCESS)
Main PID: 1399 (mysqld)
Status: "Taking your SQL requests now..."
CGroup: /system.slice/mariadb.service
└─1399 /usr/sbin/mysqld
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] InnoDB: Highest supported file format is Barracuda.
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] InnoDB: 128 rollback segment(s) are active.
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] InnoDB: Waiting for purge to start
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] InnoDB: Percona XtraDB (http://www.percona.com) 5.6.44-86.0 started; log sequence number 1784971
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521146152704 [Note] InnoDB: Dumping buffer pool(s) not yet started
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] Plugin 'FEEDBACK' is disabled.
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] Server socket created on IP: '::'.
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: 2019-10-11 18:11:23 140521942583552 [Note] /usr/sbin/mysqld: ready for connections.
Oct 11 18:11:23 rpm-dev01 mysqld[1399]: Version: '10.1.41-MariaDB' socket: '/var/lib/mysql/mysql.sock' port: 3306 MariaDB Server
Oct 11 18:11:23 rpm-dev01 systemd[1]: Started MariaDB 10.1.41 database server.
# check if it is enabled to survive the reboot
[root@rpm-dev01 ~]# systemctl is-enabled mariadb.service
enabled
[root@rpm-dev01 ~]# mysql_secure_installation
Enter current password for root (enter for none): ENTER
Set root password? [Y/n] y
New password: Enter password
Re-enter new password: Repeat password
Remove anonymous users? [Y/n]: Y
Disallow root login remotely? [Y/n]: Y
Remove test database and access to it? [Y/n]: Y
Reload privilege tables now? [Y/n]: Y
[root@rpm-dev01 ~]# mysql -u root -p
Enter password: # enter the db root password previously set
Welcome to the MariaDB monitor. Commands end with ; or g.
Your MariaDB connection id is 498
Server version: 10.1.41-MariaDB MariaDB Server
Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.
Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.
MariaDB [(none)]> CREATE DATABASE frad;
MariaDB [(none)]> GRANT ALL ON frad.* TO frad@localhost IDENTIFIED BY "fradpass!23";
MariaDB [(none)]> FLUSH PRIVILEGES;
MariaDB [(none)]> quit;
# import radius db scheme to populate frad database
[root@rpm-dev01 ~]# mysql -uroot -pDB_ROOT_PASSWORD frad < /etc/raddb/mods-config/sql/main/mysql/schema.sql
# create a soft link to activate the sql module
[root@rpm-dev01 ~]# ln -s /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/
# configure the sql module as required
[root@rpm-dev01 ~]# vi /etc/raddb/mods-available/sql
# -*- text -*-
##
## sql.conf -- SQL modules
##
## $Id: 4a59483c35c77f573fb177919e19ba4434cc3da1 $
######################################################################
#
# Configuration for the SQL module
#
# The database schemas and queries are located in subdirectories:
#
# sql//main/schema.sql Schema
# sql//main/queries.conf Authorisation and Accounting queries
#
# Where "DB" is mysql, mssql, oracle, or postgresql.
#
#
sql {
# The sub-module to use to execute queries. This should match
# the database you're attempting to connect to.
#
# * rlm_sql_mysql
# * rlm_sql_mssql
# * rlm_sql_oracle
# * rlm_sql_postgresql
# * rlm_sql_sqlite
# * rlm_sql_null (log queries to disk)
#
driver = "rlm_sql_mysql"
#
# Several drivers accept specific options, to set them, a
# config section with the the name as the driver should be added
# to the sql instance.
#
# Driver specific options are:
#
# sqlite {
# # Path to the sqlite database
# filename = "/tmp/freeradius.db"
#
# # How long to wait for write locks on the database to be
# # released (in ms) before giving up.
# busy_timeout = 200
#
# # If the file above does not exist and bootstrap is set
# # a new database file will be created, and the SQL statements
# # contained within the bootstrap file will be executed.
# bootstrap = "${modconfdir}/${..:name}/main/sqlite/schema.sql"
# }
#
# mysql {
# # If any of the files below are set, TLS encryption is enabled
# tls {
# ca_file = "/etc/ssl/certs/my_ca.crt"
# ca_path = "/etc/ssl/certs/"
# certificate_file = "/etc/ssl/certs/private/client.crt"
# private_key_file = "/etc/ssl/certs/private/client.key"
# cipher = "DHE-RSA-AES256-SHA:AES128-SHA"
# }
#
# # If yes, (or auto and libmysqlclient reports warnings are
# # available), will retrieve and log additional warnings from
# # the server if an error has occured. Defaults to 'auto'
# warnings = auto
# }
#
# postgresql {
#
# # unlike MySQL, which has a tls{} connection configuration, postgresql
# # uses its connection parameters - see the radius_db option below in
# # this file
#
# # Send application_name to the postgres server
# # Only supported in PG 9.0 and greater. Defaults to no.
# send_application_name = yes
# }
#
# The dialect of SQL you want to use, this should usually match
# the driver you selected above.
#
# If you're using rlm_sql_null, then it should be the type of
# database the logged queries are going to be executed against.
dialect = "mysql"
# Connection info:
#
server = "localhost"
port = 3306
login = "frad"
password = "fradpass!23"
# Database table configuration for everything except Oracle
radius_db = "frad"
# If you are using Oracle then use this instead
# radius_db = "(DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=localhost)(PORT=1521))(CONNECT_DATA=(SID=your_sid)))"
# If you're using postgresql this can also be used instead of the connection info parameters
# radius_db = "dbname=radius host=localhost user=radius password=raddpass"
# Postgreql doesn't take tls{} options in its module config like mysql does - if you want to
# use SSL connections then use this form of connection info parameter
# radius_db = "host=localhost port=5432 dbname=radius user=radius password=raddpass sslmode=verify-full sslcert=/etc/ssl/client.crt sslkey=/etc/ssl/client.key sslrootcert=/etc/ssl/ca.crt"
# If you want both stop and start records logged to the
# same SQL table, leave this as is. If you want them in
# different tables, put the start table in acct_table1
# and stop table in acct_table2
acct_table1 = "radacct"
acct_table2 = "radacct"
# Allow for storing data after authentication
postauth_table = "radpostauth"
# Tables containing 'check' items
authcheck_table = "radcheck"
groupcheck_table = "radgroupcheck"
# Tables containing 'reply' items
authreply_table = "radreply"
groupreply_table = "radgroupreply"
# Table to keep group info
usergroup_table = "radusergroup"
# If set to 'yes' (default) we read the group tables unless Fall-Through = no in the reply table.
# If set to 'no' we do not read the group tables unless Fall-Through = yes in the reply table.
# read_groups = yes
# If set to 'yes' (default) we read profiles unless Fall-Through = no in the groupreply table.
# If set to 'no' we do not read profiles unless Fall-Through = yes in the groupreply table.
# read_profiles = yes
# Remove stale session if checkrad does not see a double login
delete_stale_sessions = yes
# Write SQL queries to a logfile. This is potentially useful for tracing
# issues with authorization queries. See also "logfile" directives in
# mods-config/sql/main/*/queries.conf. You can enable per-section logging
# by enabling "logfile" there, or global logging by enabling "logfile" here.
#
# Per-section logging can be disabled by setting "logfile = ''"
# logfile = ${logdir}/sqllog.sql
# Set the maximum query duration and connection timeout
# for rlm_sql_mysql.
# query_timeout = 5
# As of version 3.0, the "pool" section has replaced the
# following configuration items:
#
# num_sql_socks
# connect_failure_retry_delay
# lifetime
# max_queries
#
# The connection pool is new for 3.0, and will be used in many
# modules, for all kinds of connection-related activity.
#
# When the server is not threaded, the connection pool
# limits are ignored, and only one connection is used.
#
# If you want to have multiple SQL modules re-use the same
# connection pool, use "pool = name" instead of a "pool"
# section. e.g.
#
# sql1 {
# ...
# pool {
# ...
# }
# }
#
# # sql2 will use the connection pool from sql1
# sql2 {
# ...
# pool = sql1
# }
#
pool {
# Connections to create during module instantiation.
# If the server cannot create specified number of
# connections during instantiation it will exit.
# Set to 0 to allow the server to start without the
# database being available.
start = ${thread[pool].start_servers}
# Minimum number of connections to keep open
min = ${thread[pool].min_spare_servers}
# Maximum number of connections
#
# If these connections are all in use and a new one
# is requested, the request will NOT get a connection.
#
# Setting 'max' to LESS than the number of threads means
# that some threads may starve, and you will see errors
# like 'No connections available and at max connection limit'
#
# Setting 'max' to MORE than the number of threads means
# that there are more connections than necessary.
max = ${thread[pool].max_servers}
# Spare connections to be left idle
#
# NOTE: Idle connections WILL be closed if "idle_timeout"
# is set. This should be less than or equal to "max" above.
spare = ${thread[pool].max_spare_servers}
# Number of uses before the connection is closed
#
# 0 means "infinite"
uses = 0
# The number of seconds to wait after the server tries
# to open a connection, and fails. During this time,
# no new connections will be opened.
retry_delay = 30
# The lifetime (in seconds) of the connection
lifetime = 0
# idle timeout (in seconds). A connection which is
# unused for this length of time will be closed.
idle_timeout = 60
# NOTE: All configuration settings are enforced. If a
# connection is closed because of "idle_timeout",
# "uses", or "lifetime", then the total number of
# connections MAY fall below "min". When that
# happens, it will open a new connection. It will
# also log a WARNING message.
#
# The solution is to either lower the "min" connections,
# or increase lifetime/idle_timeout.
}
# Set to 'yes' to read radius clients from the database ('nas' table)
# Clients will ONLY be read on server startup.
read_clients = yes
# Table to keep radius client info
client_table = "nas"
#
# The group attribute specific to this instance of rlm_sql
#
# This entry should be used for additional instances (sql foo {})
# of the SQL module.
# group_attribute = "${.:instance}-SQL-Group"
# This entry should be used for the default instance (sql {})
# of the SQL module.
group_attribute = "SQL-Group"
# Read database-specific queries
$INCLUDE ${modconfdir}/${.:name}/main/${dialect}/queries.conf
}
[root@rpm-dev01 ~]# chgrp -h radiusd /etc/raddb/mods-enabled/sql
# verify and check if you can still run radiusd as below
[root@rpm-dev01 ~]# pkill radiusd
[root@rpm-dev01 ~]# radiusd -X
.....
Listening on auth address * port 1812 bound to server default
Listening on acct address * port 1813 bound to server default
Listening on auth address :: port 1812 bound to server default
Listening on acct address :: port 1813 bound to server default
Listening on auth address 127.0.0.1 port 18120 bound to server inner-tunnel
Listening on proxy address * port 47495
Listening on proxy address :: port 52337
Ready to process requests
